Laramie Area Infrastructure
Wide Area Infrastructure
Gates
Internet Gates
Laramie's I-gate, N7XUC, is operated by Joel - also the developer of SmartPalm (link)
Local Area Infrastructure
Laramie APRS DIGIs
| CALL |
TYPE |
SUPPORTED ALIASES |
| N7XUC |
I-GATE |
|
|
|
TRACEn-n |
WY |
| KD7TA-7 |
DIGI |
RELAY |
WIDE |
WIDEn-n |
TRACEn-n |
WY |
| KK7CN-8 |
DIGI |
|
WIDE |
WIDEn-n |
TRACEn-n |
WY |
Tony is running an experimental weather station at KD7TA-9. Currently it's only measuring barometric preasure, but I'm told there's more to come!
Laramie WIDE Digi Coverage

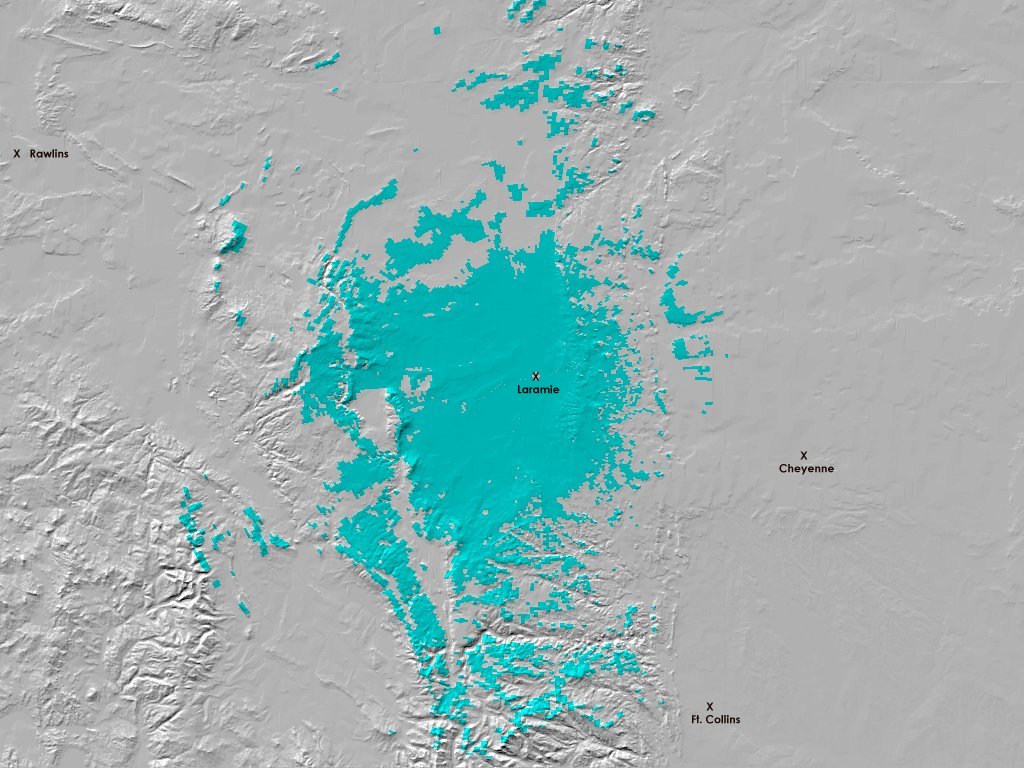

View a Map of the Coverage Area for the KD7TA-7 DIGI 159Kb

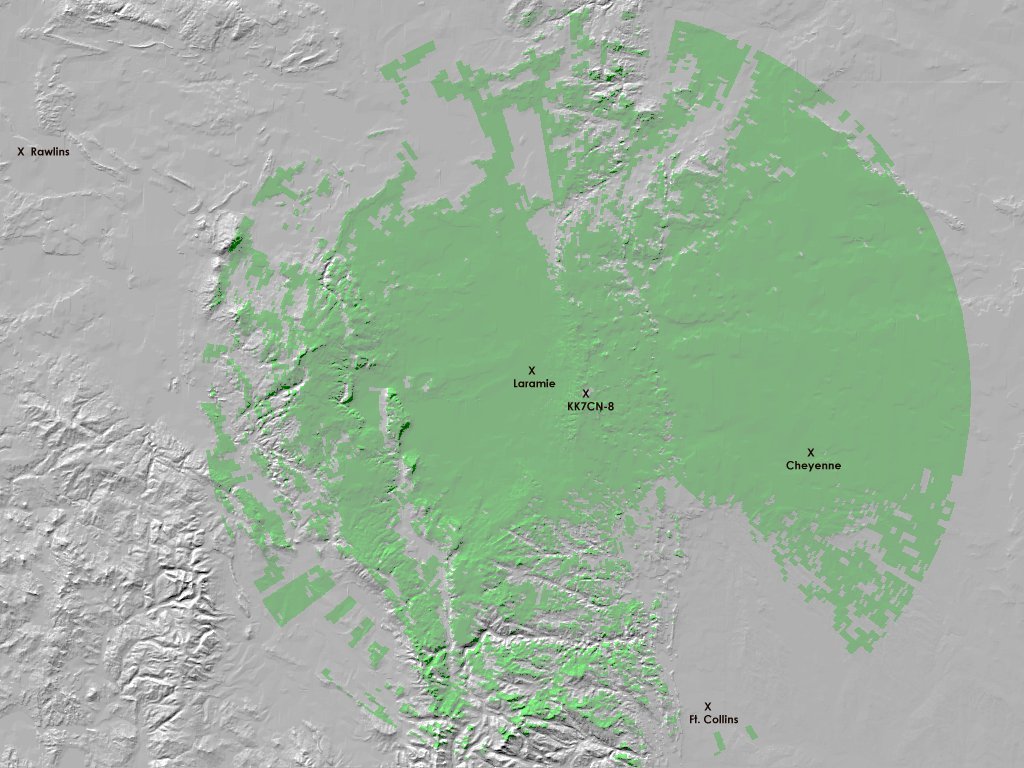

View a Map of the Coverage Area for the KK7CN-8 Digi 146Kb
Shaded aresa indicate expected signal strengths >=0.05 micro volt
City locations are aproximate - should be within about 1/2 mile of actual

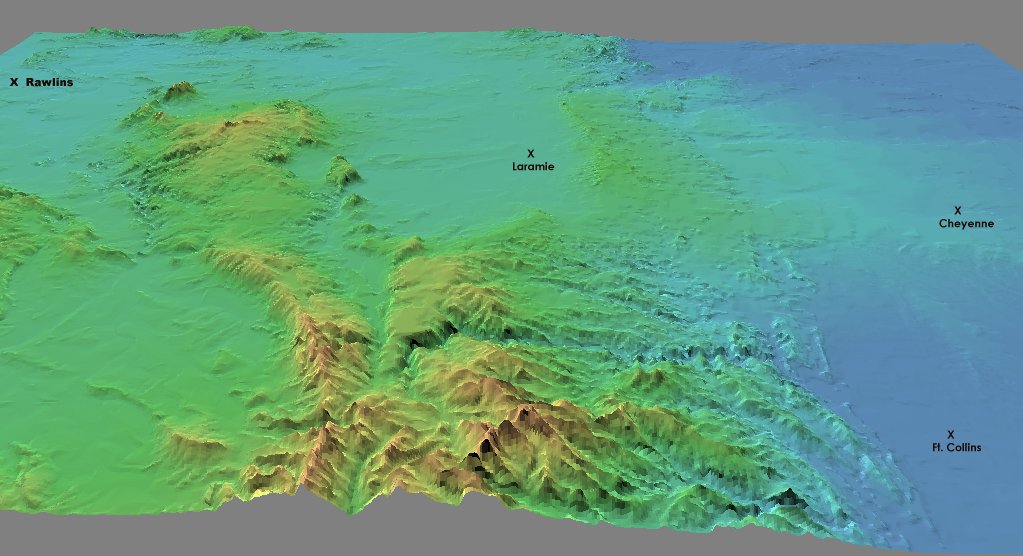

And more for the 'Geewhiz' factor than anything, a false perspective, contour of the area shown in the above maps - 101k - vertical relief is exagerated about 4x
I used Radio Mobile Deluxe by VE2DBE to create these images
Find it at: http://www.cplus.org/rmw/english1.html - you'll have to 'cut&paste' this URL into your Browser or type it in. It won't let me link to it for some reason, I dunno
